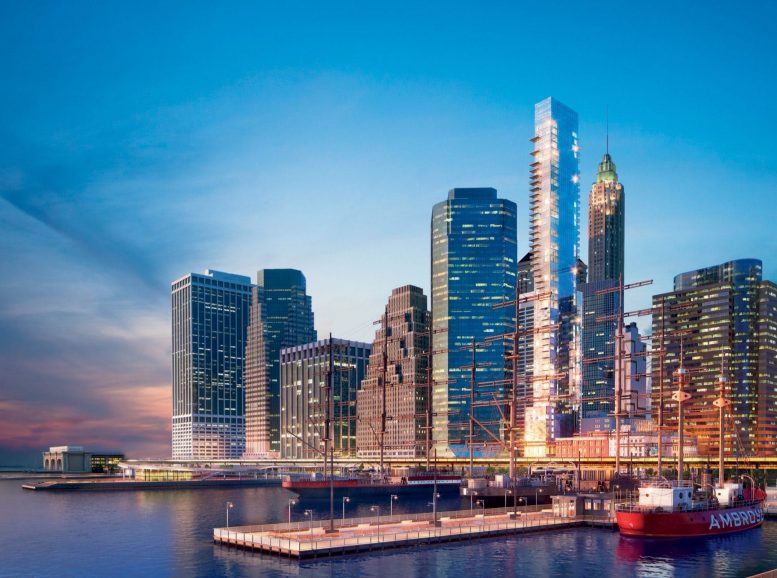

The Leaning Tower of...
NYC?

The problems at 161 Maiden Lane began beneath the surface, with a fundamental decision that would doom the entire project. Fortis Property Group chose to save approximately $6 million by using "soil improvement" methods instead of the deep pile foundations that have been Manhattan's construction standard since the late 1800s.

In Manhattan's Financial District, skyscrapers typically drill steel pylons about 50 feet deep into solid bedrock. This tried-and-true method provides the unshakeable foundation necessary for structures reaching hundreds of feet into the sky. But the 161 Maiden Lane site presented unique challenges that should have made developers even more cautious, not less.

The site sits on Colonial "infill", a 24-foot layer of whatever materials the Dutch could find in the 1600s to expand Manhattan's footprint. This included gravel, bricks, old docks, and even shipwrecks. Below that lay marshland, sandy deposits, and decomposed rocks, with bedrock sitting 155 feet below the surface.

Instead of drilling down to bedrock, Fortis opted for jet grouting, injecting high-pressure cement mixtures into the weak soil to create a semi-solid foundation mat. The method was cheaper and faster, but it created a foundation that was essentially floating on unstable ground.

The result? A 670-foot tower that now leans 3 inches to the north and has been described by lawyers in court as "shaped like a banana."

The 161 Maiden Lane disaster reveals how interconnected construction problems become when initial research and planning are inadequate:

The lean discovered too late: By 2018, subcontractors noticed that one corner of the concrete foundation mat had settled unevenly. The building's tilt made installing the glass curtain wall increasingly complex, with misaligned anchors threatening window malfunctions, elevator problems, and waterproofing failures.

Safety violations cascade: The project became a case study in how safety problems compound. Here's the detailed timeline of violations and incidents:

Tragic human cost: In September 2017, a worker fell to his death from the 29th floor after unhooking his safety harness when it jammed in scaffolding. The concrete subcontractor, SSC High Rise, later pleaded guilty to manslaughter, highlighting how cost-cutting measures often compromise safety protocols and cost lives.

Construction chaos: As the building's structural problems became apparent, contractors attempted increasingly desperate fixes. Instead of addressing the foundation issues, they tried to counterweight the building by pouring the south side out of alignment. As one lawyer told the judge: "Your Honor, it's shaped like a banana right now."

Financial devastation: Construction ceased entirely in July 2020. Buyers who had paid hundreds of thousands in apartment upgrades lost their investments. Legal battles between developers, contractors, and buyers continue today.

What makes the 161 Maiden Lane story particularly instructive is how a relatively small upfront savings, $6 million on a $272 million project, created exponentially larger problems:

Geological blindness: While geotechnical surveys identified the challenging soil conditions, the research apparently didn't adequately model long-term stability risks or compare performance data from similar foundation methods in comparable conditions.

Precedent ignorance: A thorough investigation of similar projects might have surfaced relevant warnings. San Francisco's Millennium Tower, which faces similar tilting issues due to inadequate foundation depth, could have served as a cautionary precedent.

Regulatory shortsightedness: Better research into NYC building code enforcement patterns might have predicted the enhanced scrutiny that non-traditional foundation methods would face.

Risk miscalculation: The true cost-benefit analysis should have included potential failure scenarios, not just construction savings.

The construction industry has always grappled with uncertainty, soil conditions, regulatory requirements, material performance, and countless other variables that can make or break a project. What's changed is our ability to analyze these risks comprehensively before breaking ground.

Today's project teams have access to vast databases of construction outcomes, regulatory patterns, and technical performance data that simply weren't available when 161 Maiden Lane began in 2015. Modern research tools can process geological surveys alongside historical building performance data, identify relevant precedents from global construction databases, and model risk scenarios that traditional analysis might miss.

The question isn't whether we can predict every possible construction challenge, it's whether we're using available tools to identify and mitigate the most significant risks before they become catastrophic problems.

As I walk past 161 Maiden Lane today, seeing its graffiti-tagged exterior and exposed concrete structure, I'm struck by how this disaster was entirely preventable. The geological challenges were known. The regulatory risks were predictable. Similar foundation failures in other cities provided clear warnings.

What was missing wasn't information, it was the comprehensive analysis needed to make sense of that information in the context of this specific project.

For architects, developers, and engineers working on complex urban projects, 161 Maiden Lane offers crucial lessons: thorough research isn't just about checking boxes or meeting minimum requirements. It's about understanding the full ecosystem of risks and opportunities that will determine whether a project succeeds or fails.

In a city built on ambitious engineering, we can't afford to repeat the mistakes of 161 Maiden Lane. The tools exist to do better, we just need to use them.

The next time you see a crane rising in Manhattan's skyline, remember that behind every successful tower is a foundation of thorough research. In an age of unprecedented access to data and analysis tools, there's no excuse for the kind of preventable disaster that continues to cast its shadow over the Financial District.
